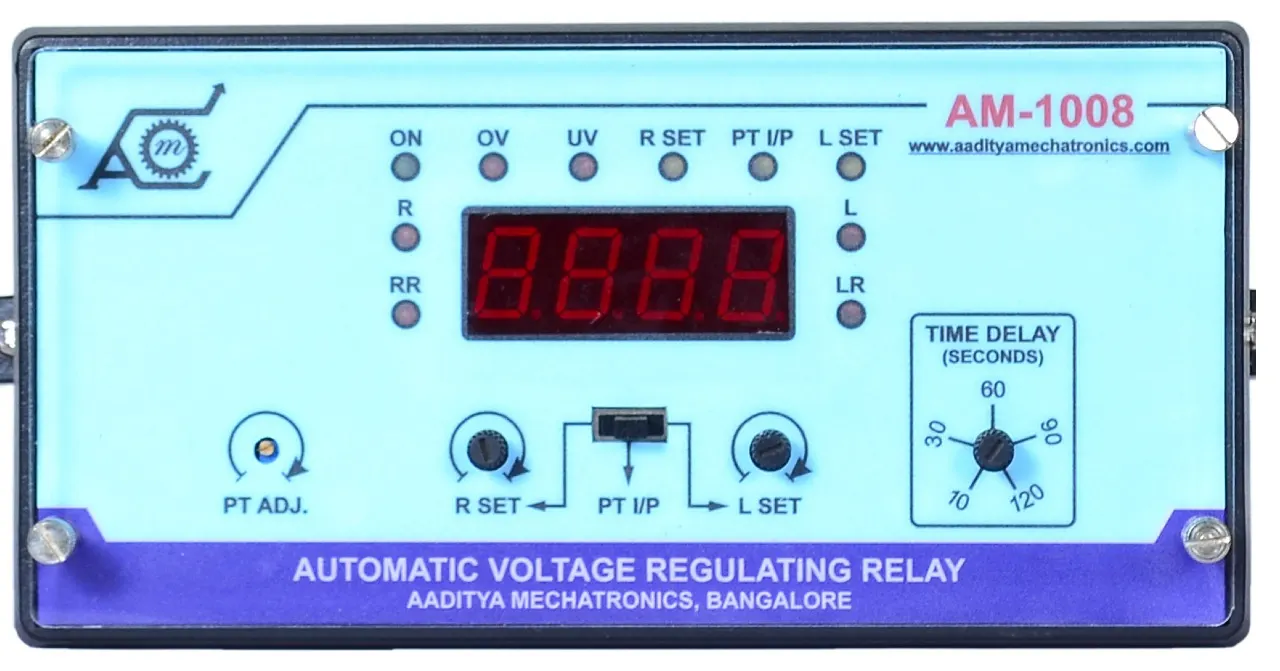

AVR-AutomaticVoltageRegulator(AM1008)
This is an automatic voltage regulating relay with microcontroller based architecture. Settings are made through front provided trim-pots and all data is stored in nvram. Built-in PT adjustment is also provided for precise measurement and control of PT voltage.
Technical Specifications
| SL NO | PARAMETERS | DESCRIPTION |
|---|---|---|
| 1 | Aux supply | 90-260V AC, 50Hz |
| 2 | PT supply | 110V AC, 50Hz |
| 3 | Nominal Setting (NS) | 85-155V |
| 4 | Lower setting (LS) | 95-125V |
| 5 | Raise setting (RS) | 90-120V |
| 6 | Time delay | 1-120 seconds programmable |
