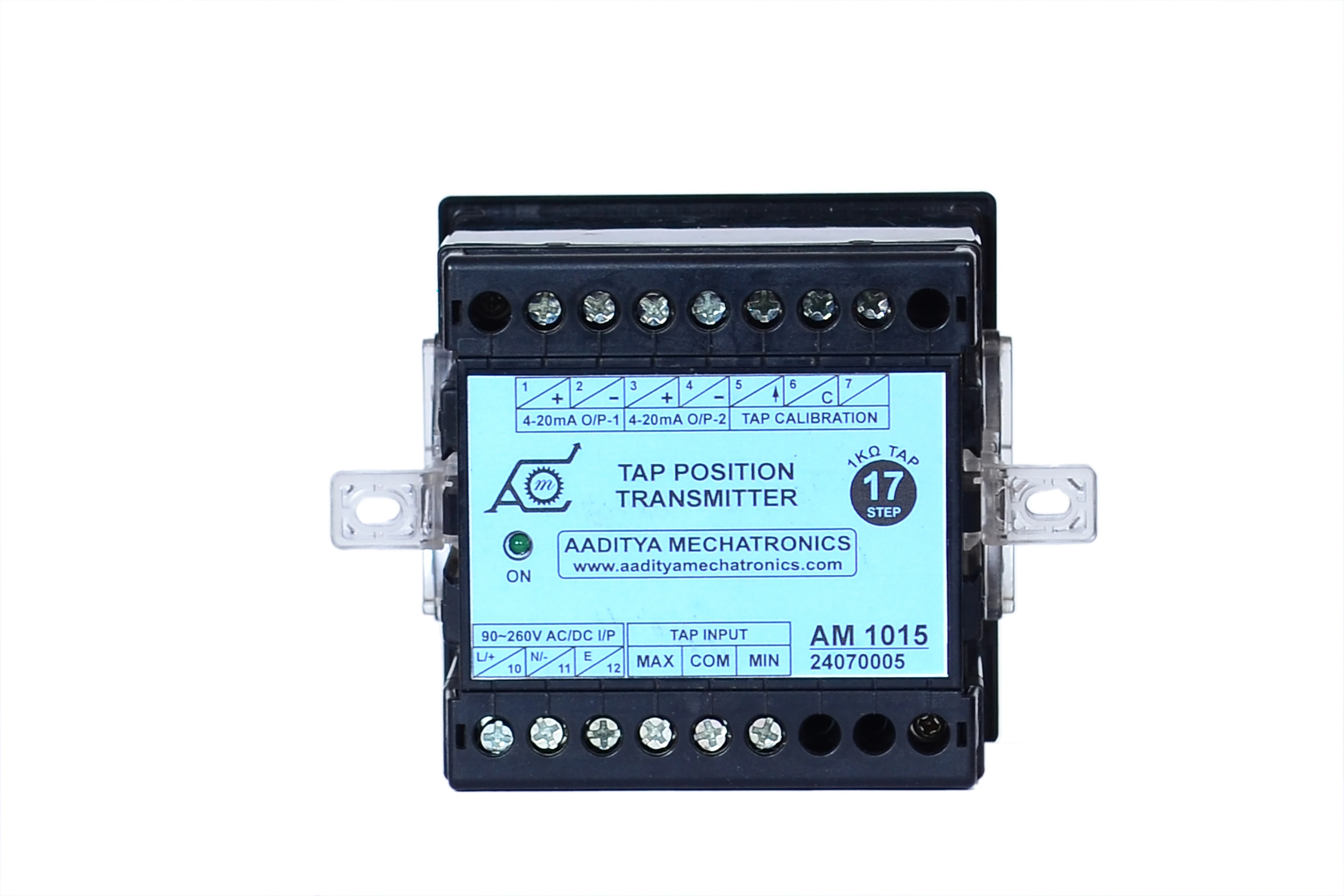

AM1015-TAP POSITION Transmitter-TPT
Potential free contacts of Tap Changer switch can be connected to our Tap Position Transmitter TPT which converts the Tap positions of the transformer into corresponding 4-20mA dc signal. This signal is used to display the Tap Position at a remote point.
Technical Specifications
| SL NO | PARAMETERS | DESCRIPTION |
|---|---|---|
| 1 | Power Supply | 90-260V AC/DC |
| 2 | Input | Tap changer switch potential free contacts |
| 3 | Analog Output | 4-20 mA Suitable for 500Ω Burden |
| 4 | Accuracy | ±0.2mA at any point of 4-20mA |
| 5 | Range | 1 to 17 position (other range on order) |
| 6 | Degree of Protection of Enclosure | IP 40 & IP 10 for Terminals |
| 7 | Overall Dimension | 96(H)X96(W)X74(D)mm |
