Scanners are Microprocessor based electronic instruments for various applications like Transformer Oil Temperature Monitoring and Bearing Temperature monitoring, etc... Instruments with capability of sensing RTD and Thermocouple are available. Optional data logging features are also available.

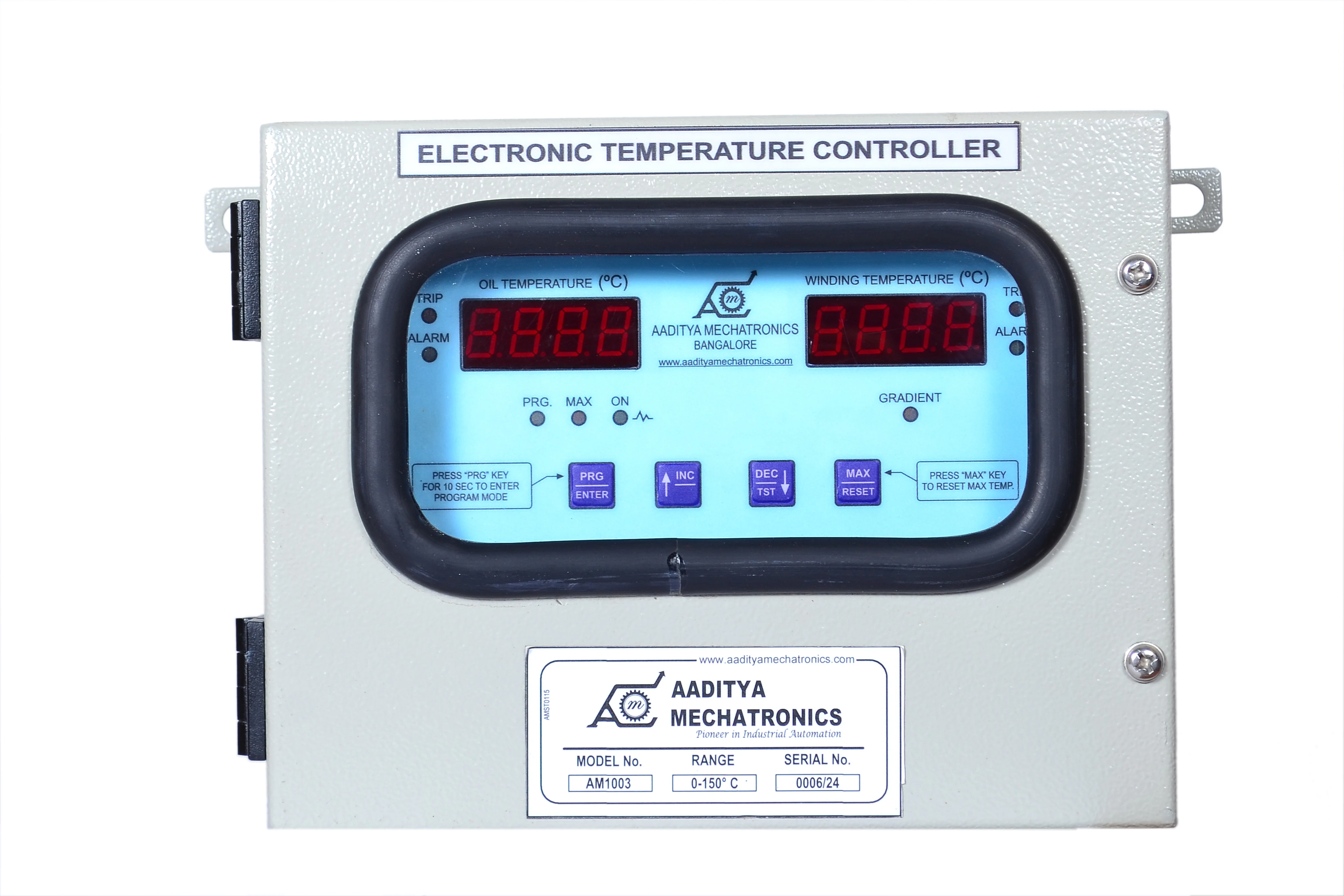

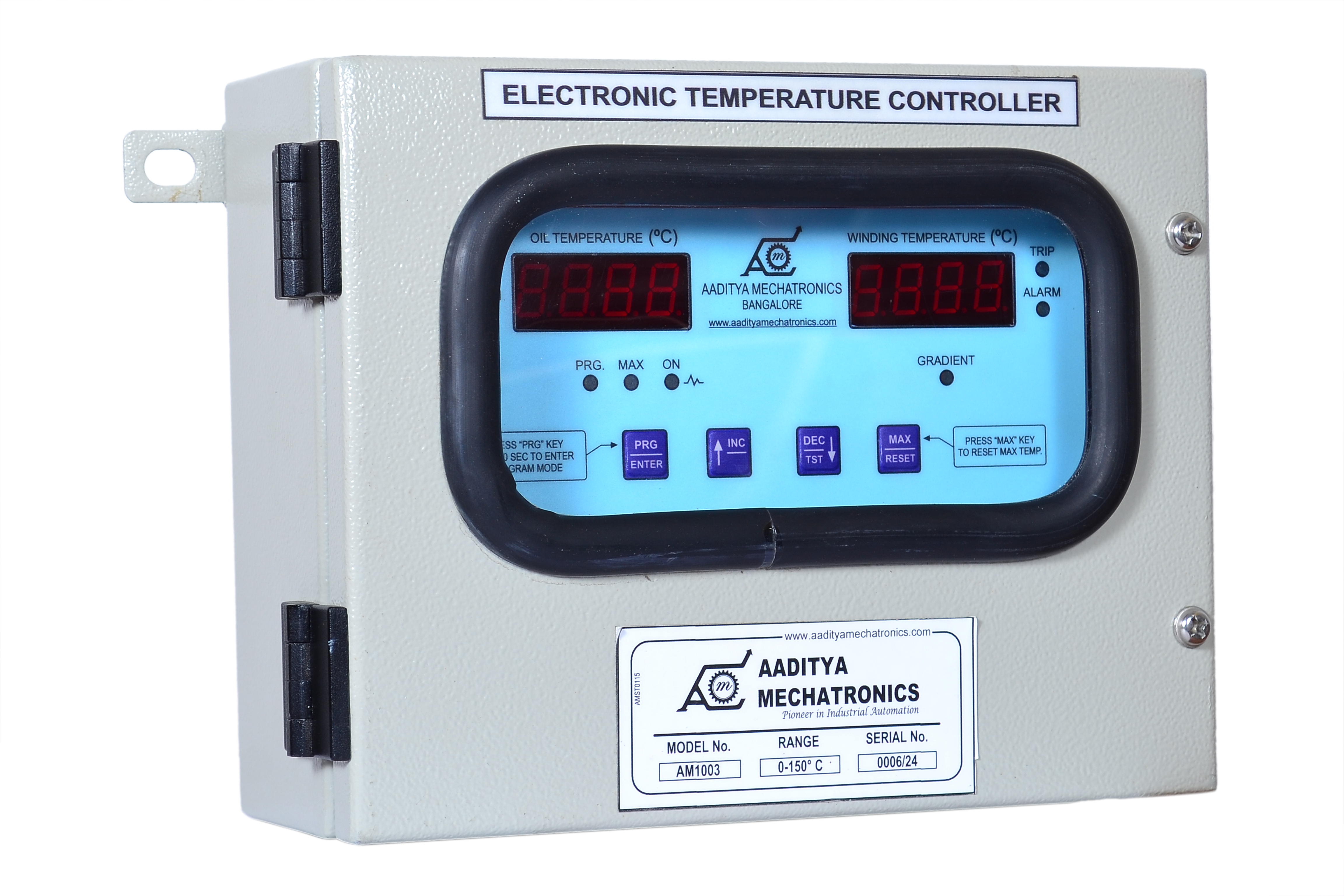

This Scanners used to indicate and Control Oil & Winding Temperature of the oil – immersed transformers. 6 Relays are provided for Alarm, Trip and Cooler functions and operate as per the set value. 4-20mA DC signal outputs are provided separately for OTI & WTI for Remote Indication or SCADA purpose. The System has the capability to store the maximum temperature attained.

Technical Specifications

SL NO	PARAMETERS	DESCRIPTION
01	Temperature sensor input	RTD (PI-100 DIN 43760)
02	No. of sensor Inputs	ONE
03	CT secondary current Input	1.0A – 5.0A (User Selectable)
04	Temperature Rise	1°C –60°C (User selectable)
05	No. of set points OTI	Two independent output relays for Alarm & Trip
06	No. of set points WTI	Four Independent Output Relays for Alarm, Trip, Fan1 and Fan2.
07	Range	(0-150)°C (Other ranges on request)
08	Resolution	0.1 °C
09	Accuracy	±1°C
10	Communication	RS-485 MODBUS RTU protocol & Data logger (Optional)
11	Datalogger	90 days storage optional
12	Supply voltage	90-260V AC/DC
