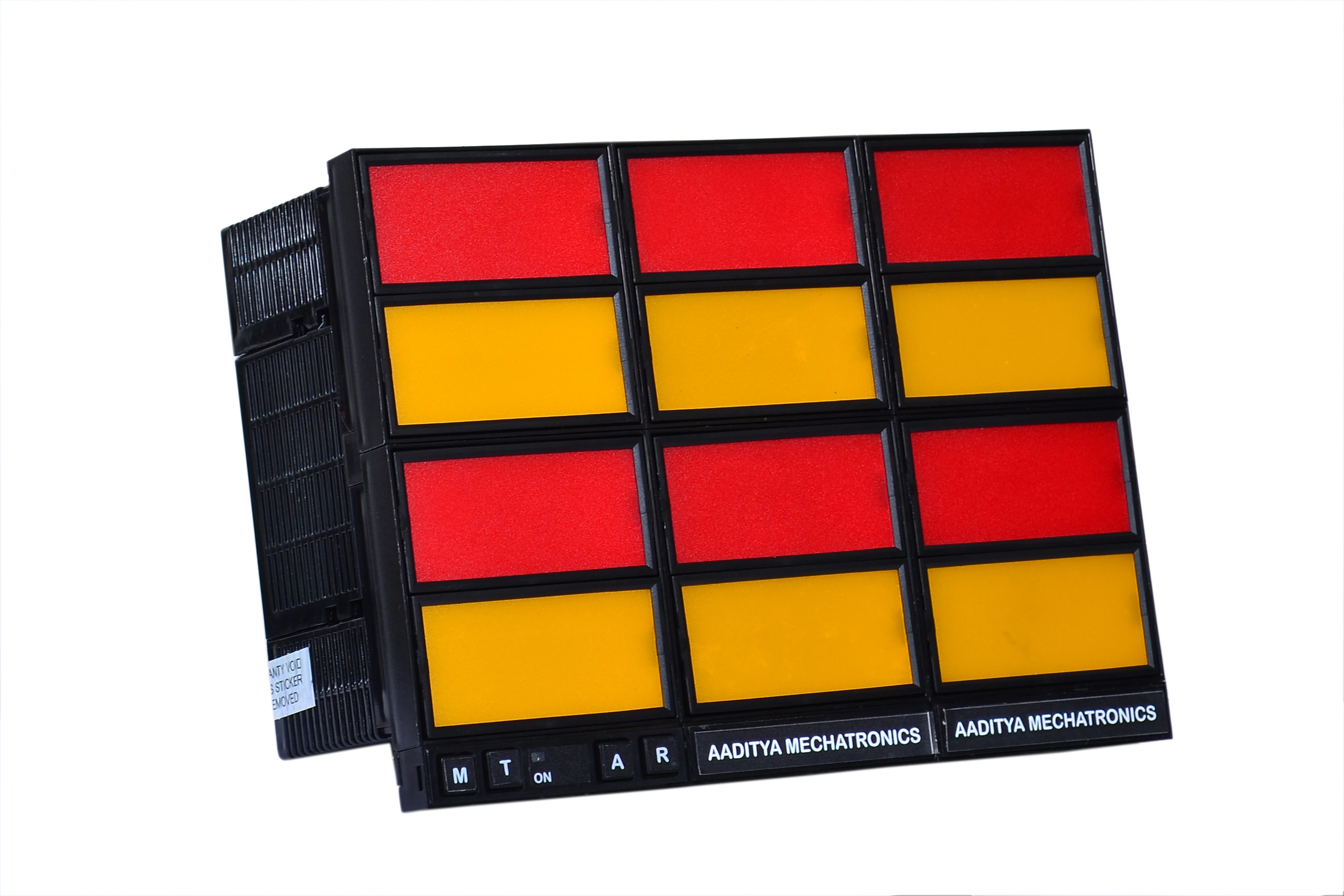

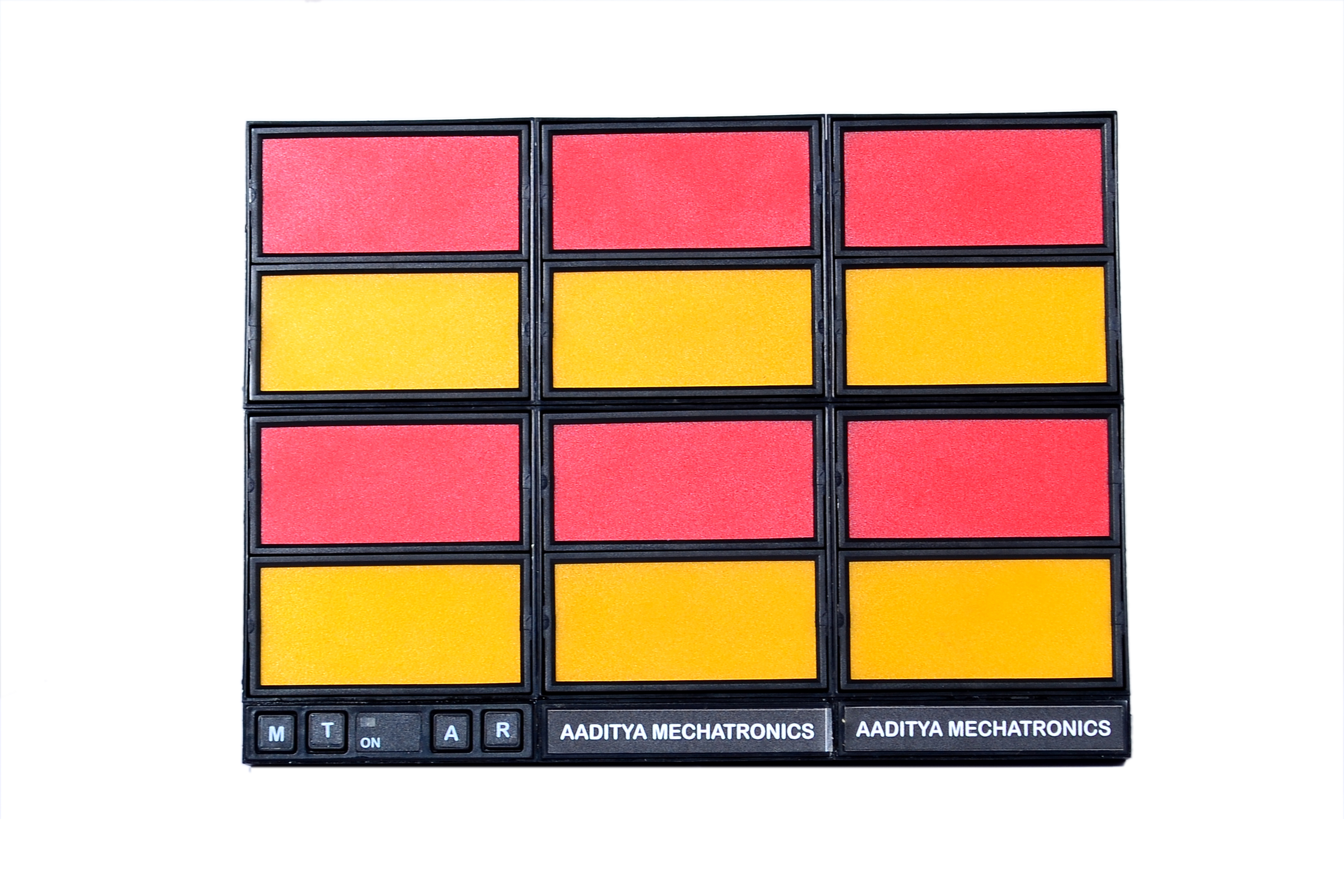

The annunciator are based on a core modular design approach both on the mechanical and the electronic front, enabling us to provide un-restricted ROW & COLUMN configurations. A format and size will be available to match your exact requirements. Each individual alarm window is fully programmable through DIP switches located at the rear side of the system. This allows the user to select many different features giving hundreds of possible combinations.

Numerous relay outputs are included to connect to external audible alarms. Our annunciators can be provided with individual repeat relays, inbuilt high dB audio alarms and communication facilities.

All annunciators can be supplied with a choice of three window sizes (small, medium & big) with ultra-bright high efficient, low power LED illumination. The annunciators provide an ideal solution for alarm management and has been designed for industrial control panel applications.

Features

Modular high pressure injection molded plastic construction available from 1-128 alarm channels with super bright LED backlit windows.
Available in six colors & three window sizes.
Inbuilt (>90dB) piezo buzzer.
Shallow depth.
Replaceable window legends.
Wide operating range power supply.
Optically isolated inputs.
Unique & vast range of optional features.
Six operating modes including five ISA sequences.
Field selectable NO/NC inputs & grouping of output relay contacts.
Internal add-on pushbutton keys (without sacrificing any window).
High strength injection molded panel mounting clamps & screws.
Custom made barrier terminals with finger safe shrouds.
Site selectable window flash rate.
