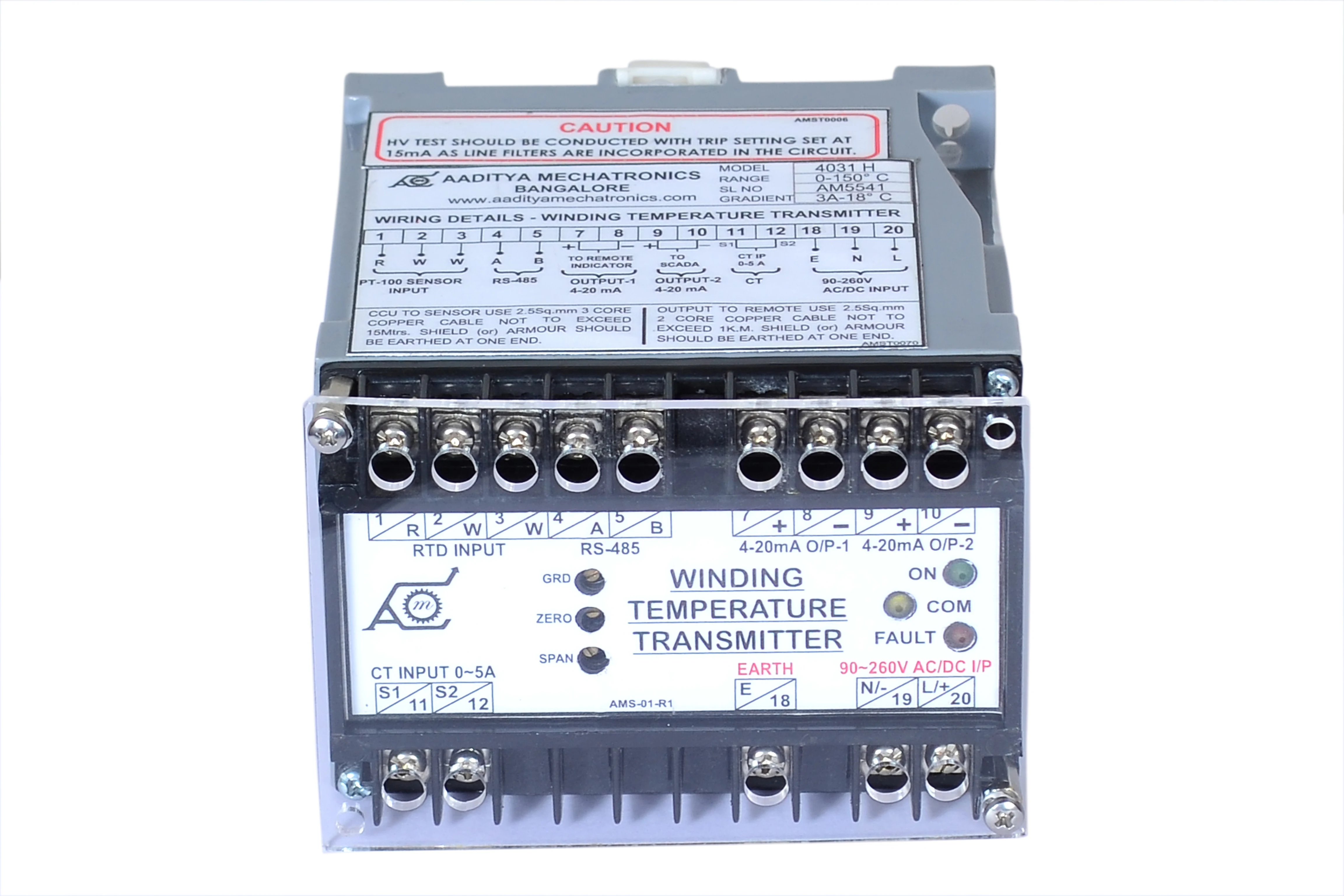

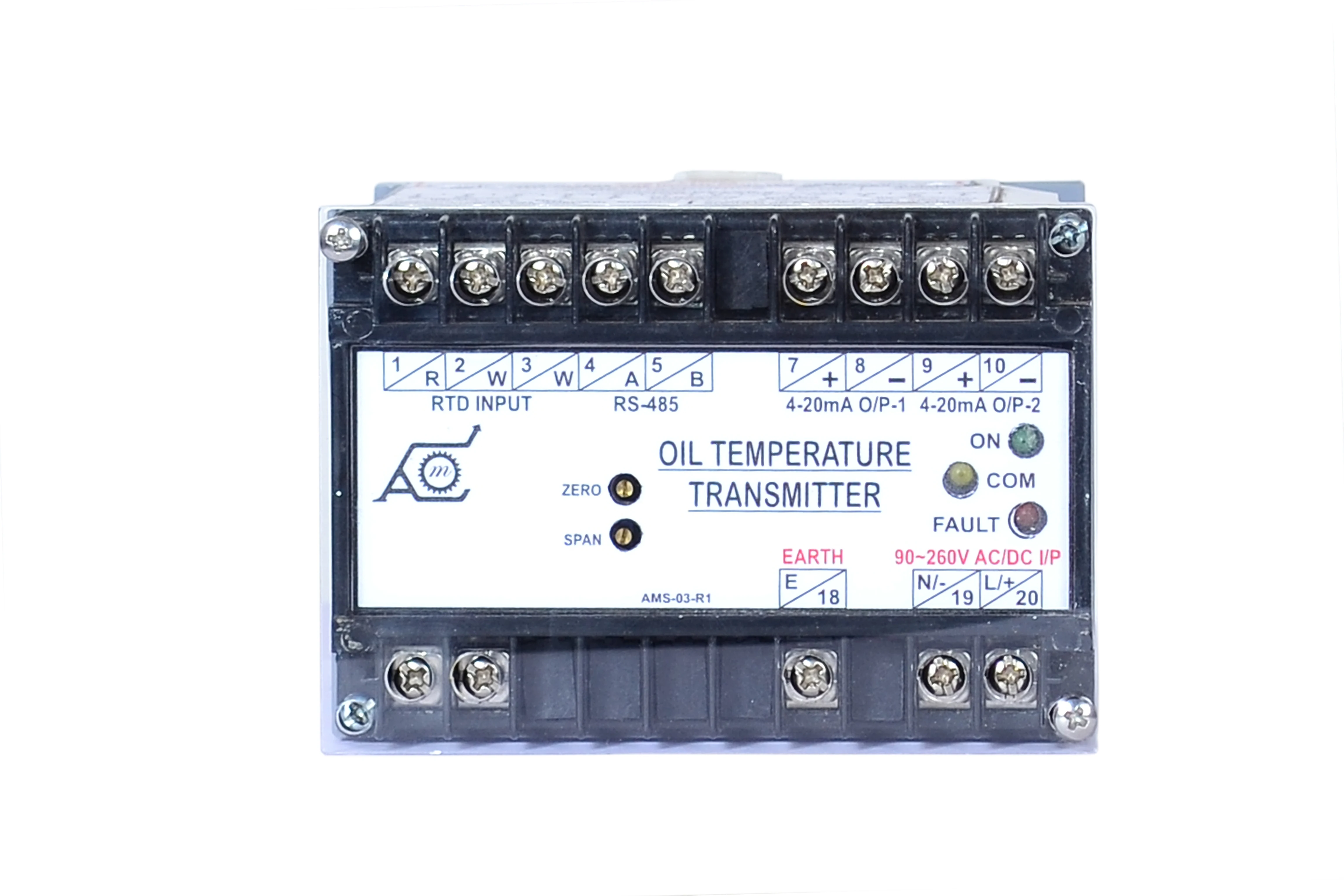

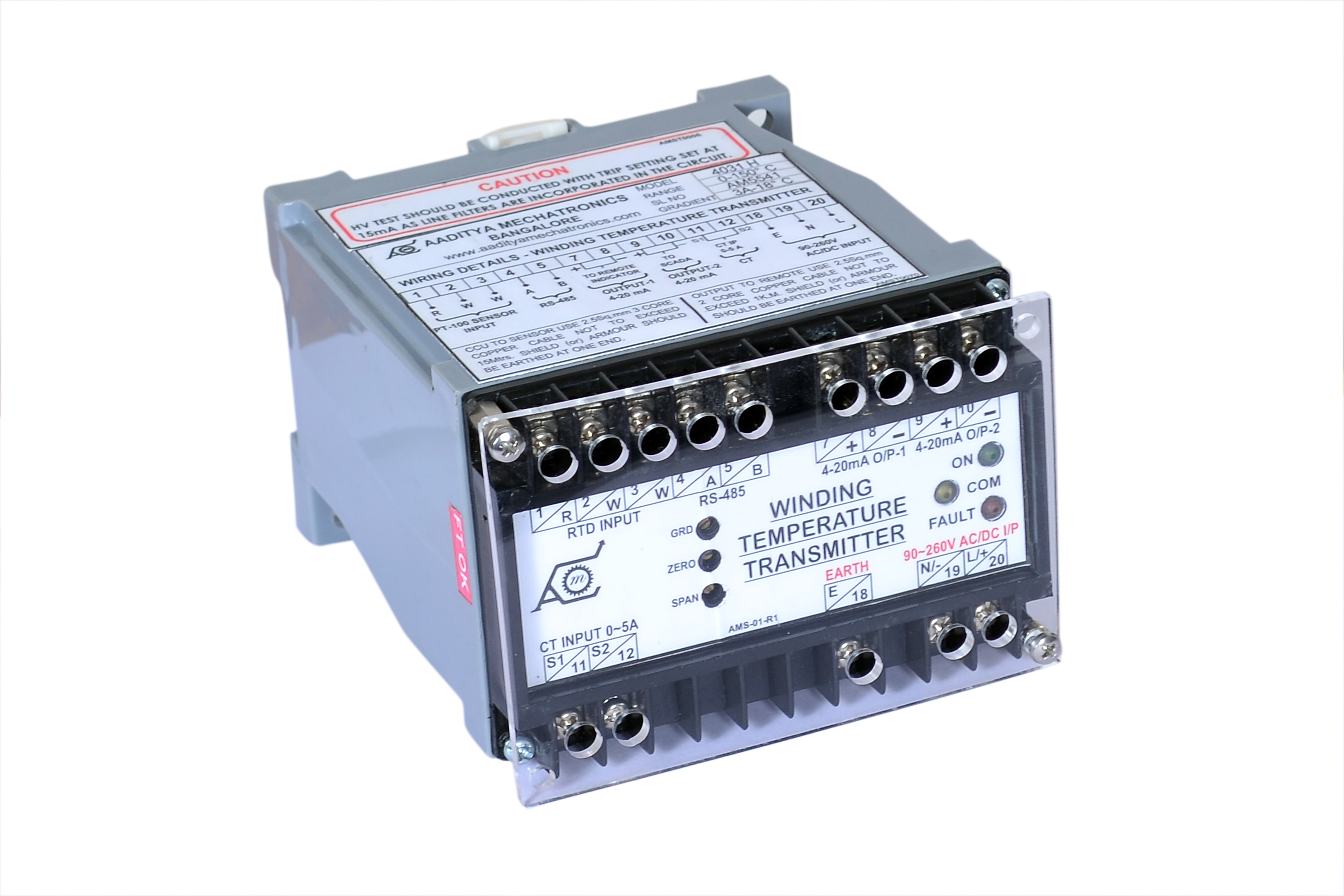

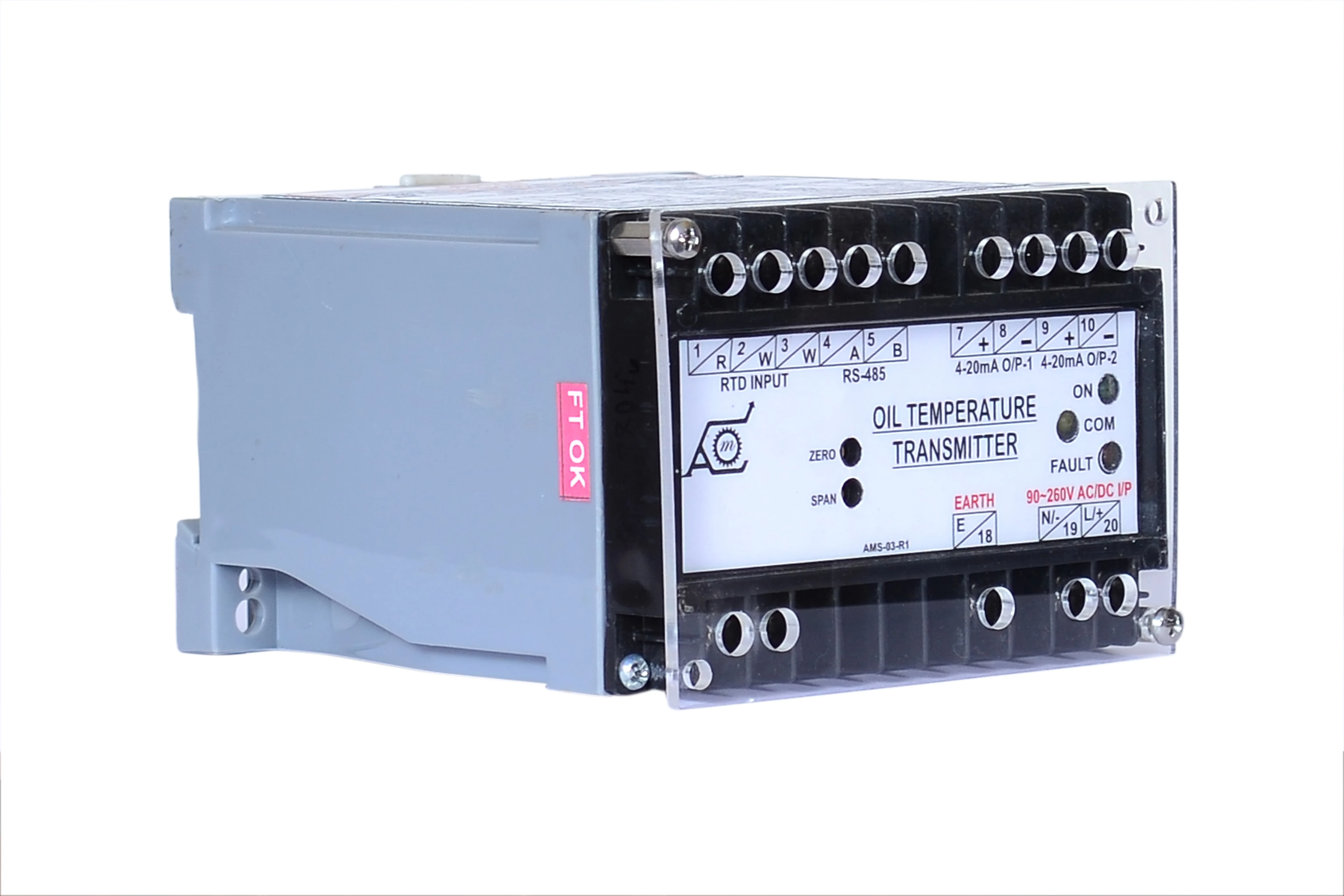

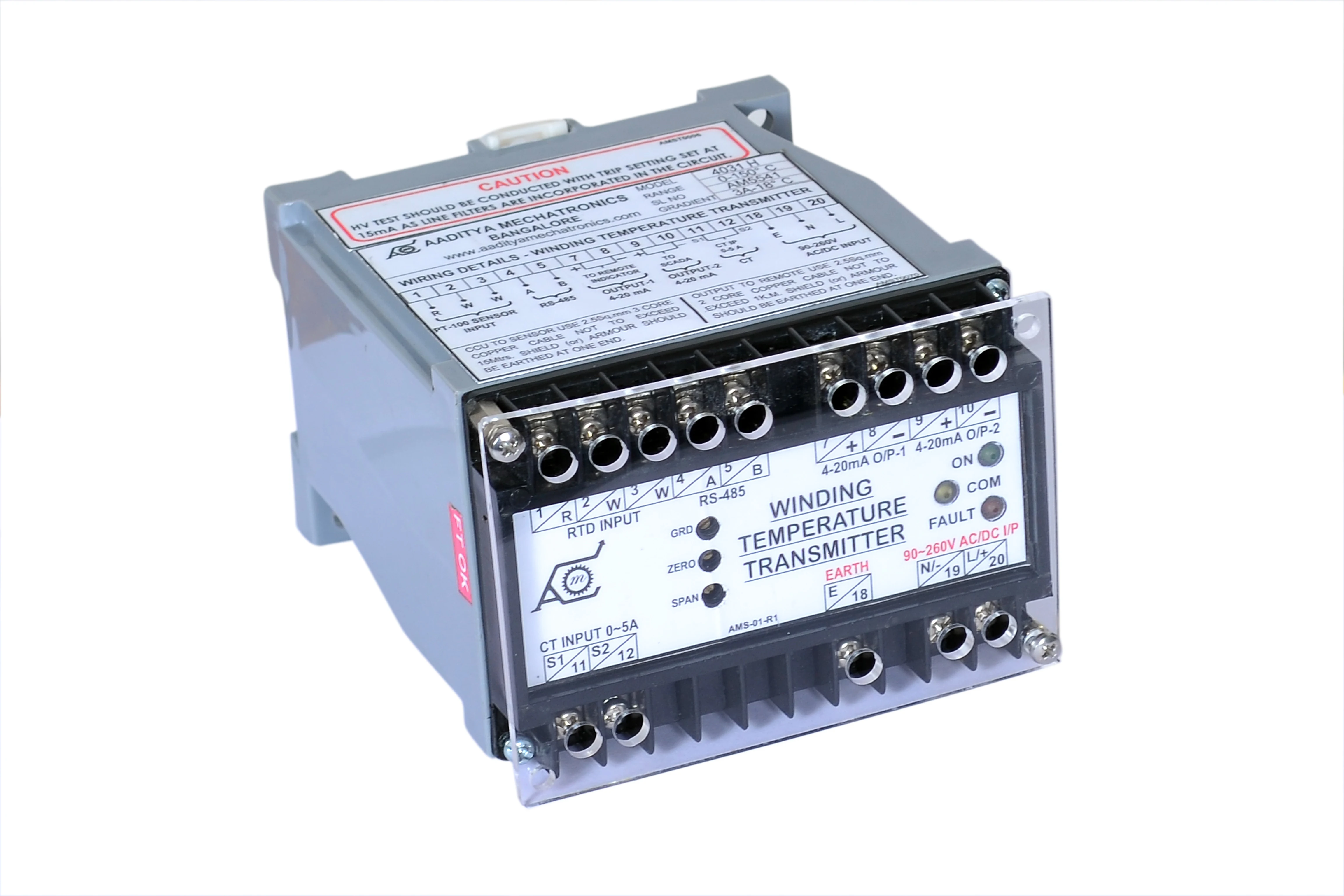

AM1004/AM1005
These are Microprocessor based electronic instruments Used for Resistance to Current Transducer, 2 outputs signals are used to real-time temperature transmission for remote monitoring and SCADA systems.
Technical Specifications
| SL NO | PARAMETERS | DESCRIPTION |
|---|---|---|
| 1 | Power Supply | 90-260V AC/DC |
| 2 | Input | PT 100 RTD (Simplex 3 wire) |
| 3 | CT Signal in case of WTI | 0-5 A AC |
| 4 | Signal Output | 2 No’s of 4-20 mA DC |
| 5 | Burden On Output Signal | 600 Ohms Maximum Including Loop Resistance |
| 6 | Degree of Protection of Enclosure | IP 40 & IP 10 for Terminals |
| 7 | Overall Dimension | 100(L) X 75 (W) X 112(D) MM with Din rail Mounting or Screw Fixing |
