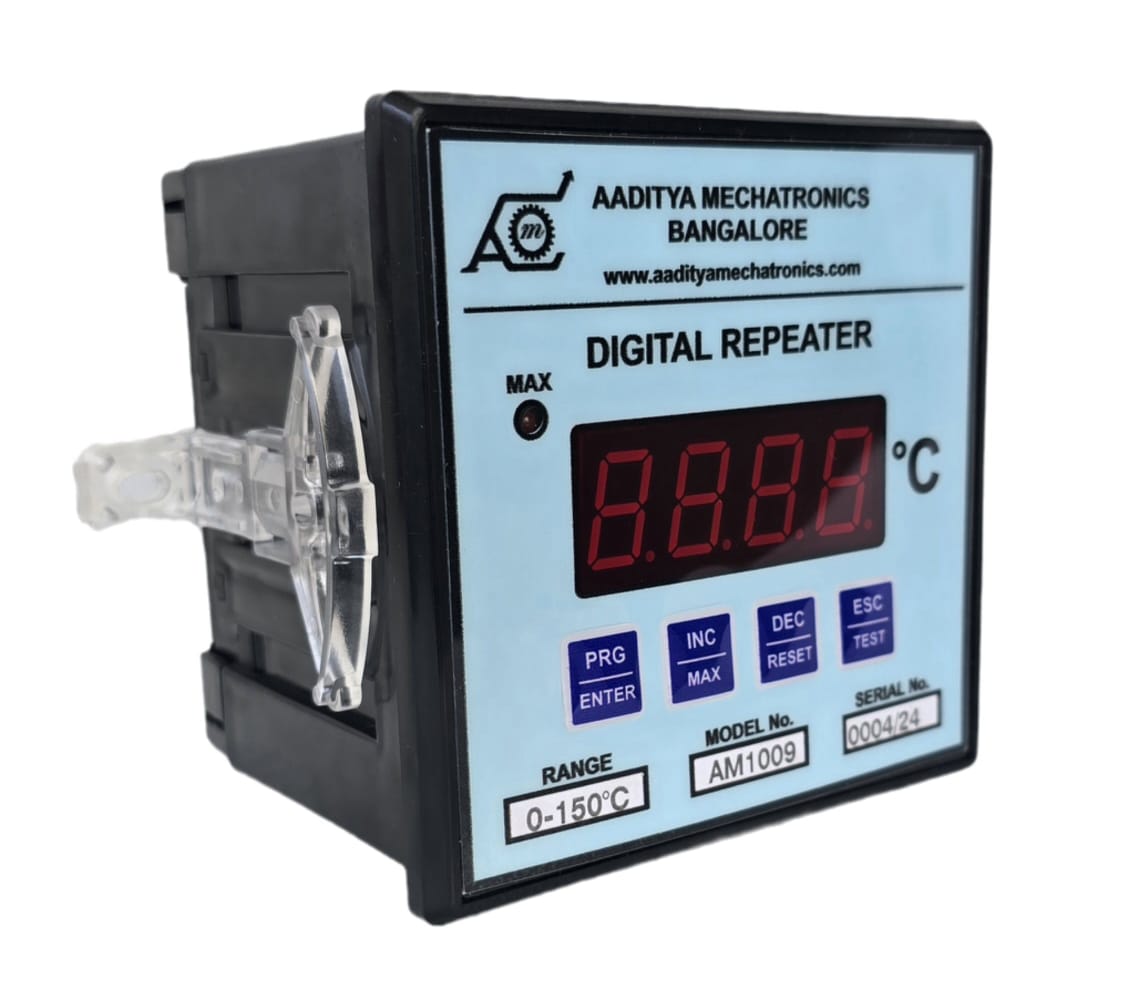

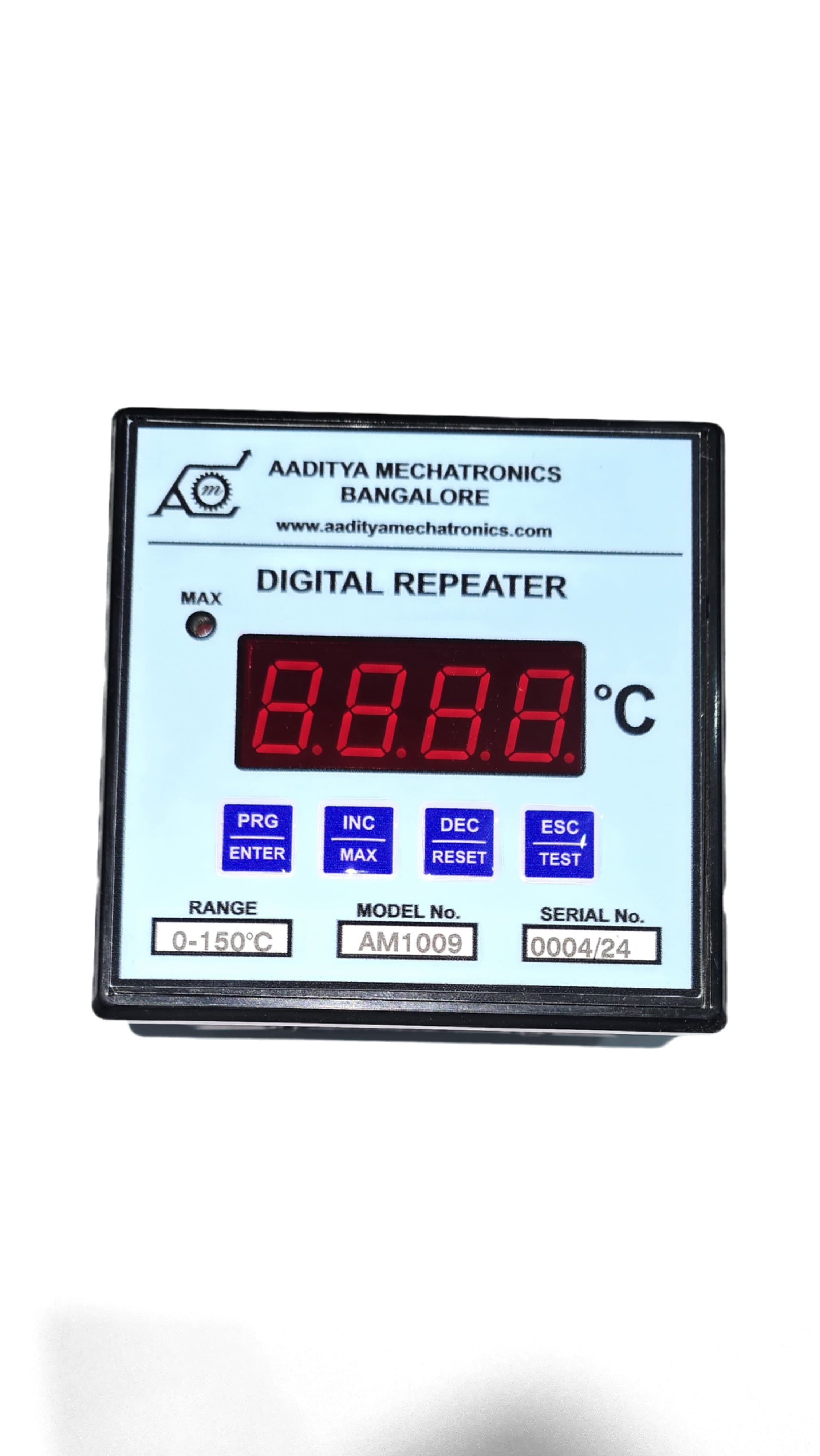

DigitalRepeater(AM1009)
Remote indicator is used to indicate temperature of the transformer. This system is electrically isolated from input power supply. The Potentiometer/Resistance input 0-2.8k ohm to Microcontroller and it display Corresponding Temperature accordingly in a Quad Seven segment Display.
Technical Specifications
| SL NO | PARAMETERS | DESCRIPTION |
|---|---|---|
| 1 | Input | 0-2.8k ohm Resistance Input |
| 2 | No. of Input | One |
| 3 | Range | 0-150⁰C |
| 4 | Resolution | 0.1ºC |
| 5 | Accuracy | ±1ºC |
| 6 | Display | QUAD seven segment LED display |
| 7 | Supply Voltage | 90-260v ACV/DC |
