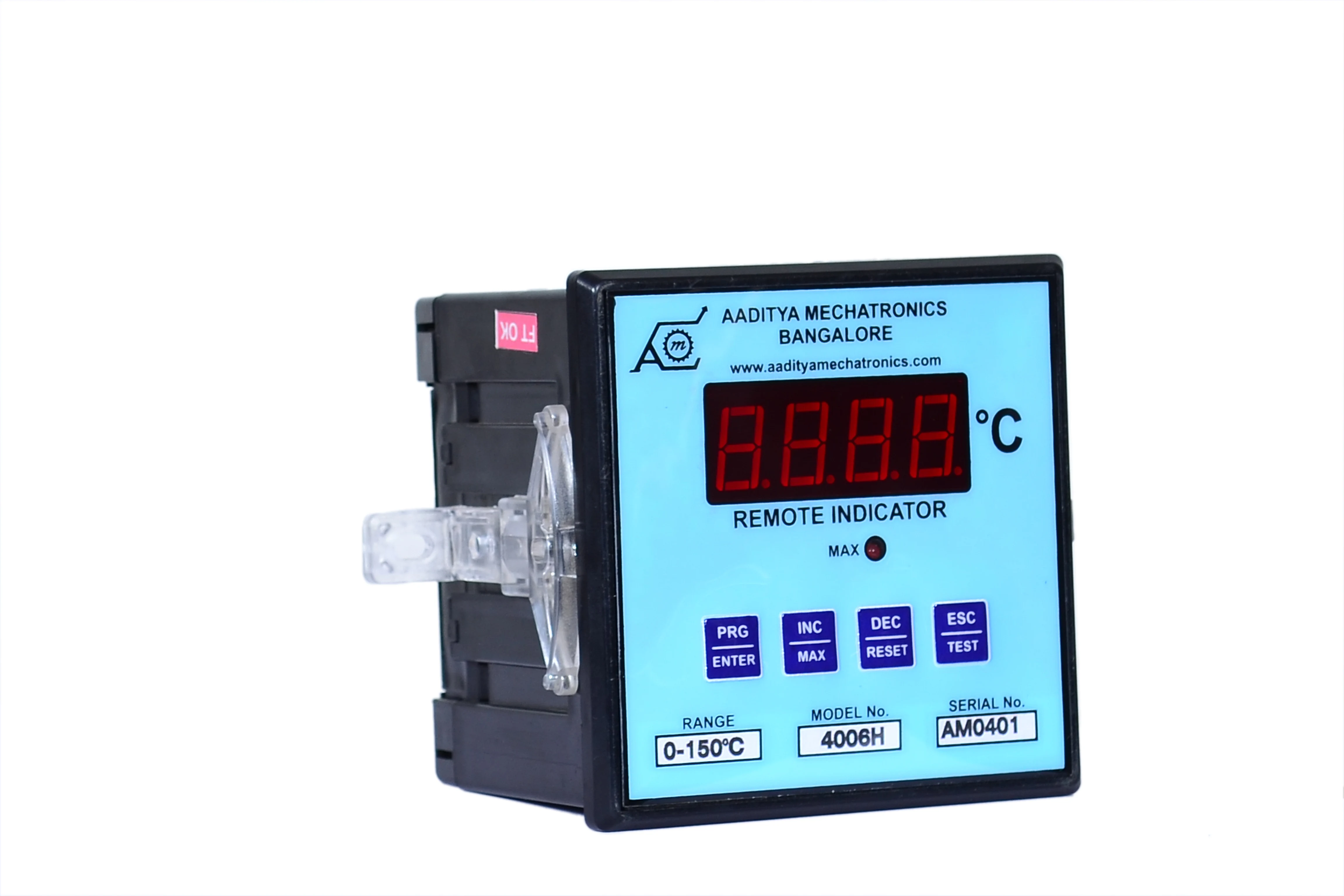

Remote indicator is used to indicate temperature of the transformer. This system is electrically isolated from input power supply. The DC Current 4-20mA is injected to microcontroller and it display corresponding Temperature accordingly.

Technical Specifications

SL NO	PARAMETERS	DESCRIPTION
1	Input	4-20 mA Signals from CCU
2	Power Supply	90-260V AC/DC
3	Display	4 Digits , 0.56 Inch , 7 Segment Red color Display
4	Resolution	0.1 °C
5	Accuracy	±1ºC
6	Signal Output	Up to 4 No’s of 4-20mA DC
7	SCADA Communication	RS485 RTU Protocol
8	Overall Dimension	96(L)X 96(W)X110(D) MM with Panel mount Option
9	Degree of Protection of Enclosure	IP 20
